Brand Name : HBONY
Model Number : HBY-PJ550P
Certification : CE/CCC/FCC/ROHS/ISO9001
Place of Origin : Guangdong , China
MOQ : 4 Pieces
Price : Negotiation
Payment Terms : L/C , T/T , Western Union , Paypal
Supply Ability : 3000 pieces per week
Delivery Time : 5-8 work days
Packaging Details : Carton Box with PE Foam+wooden box
Panel size : 55 inch
keyword : Seamless LCD Video Wall
Operating Temp. : 0~40°C
Brightness : 500cd/m² 700cd/m²
Viewing Angle : Horizontal 178/Vertical178
Panel Display Area : (Width)1209.6mm*(Height)680.4mm
Input Port : 2*BNC , 1*VGA , 1*DVI , 1*HDMI , 1*RS232 , 1*USB
Output Port : 2*BNC,2*RS232
thin bezel /seamless 3x3 55inch IPS LCD video wall with HD matrix switcher video wall
1. Unit size:55 inch low price
2. Bezel:1.8mm ultra narrow
3. Interface: VGA,DVI,HDMI,BNC,AV,RS232
4. Splicing Way: Horizontal/Vertical
5. Installation Way:Wall mounted, Floor standing, Embedded in wall or Cabinet
6. Maintenance Way: Front/Back
7. Applications:Surveillance system,advertising,information display,Meeting room
8. Usage:Indoor(500nits/700nits)/Outdoor(1500nits~2500nits)
Specification/Model | seamless ultra narrow bezel size lcd video wall price |
Panel Size | 55”LCD-DID video wall price |
Power Consumption of Stand-alone | 260W |
Service Life of Panel | 60000Hours |
Size of Shell Frame(±1mm) | Single side one the right and the left:0.9mm/single side on top and bottom:0.9mm |
Panel Display Area | (Width)1209.6mm*(Height)680.4mm |
Shell Color | Black |
Working Humidity | 10%-90% |
Working Temp. | 0-40 Celsius degree |
Input Port | 3*BNC, 1*VGA, 1*DVI,1*HDMI |
VGA/DVI Resolution Ratio | 640*480,800*600,1024*768,1280*1024, 1600*1200,1920*1080 |
HDMI Resolution Ratio HDMI | 480I,480P,576I,720P,1080I,1080P |
Output Port | 1 Video output(BNC) |
Split Screen/PIP Mode | Two signals image or PIP screen display |
Splice Function | Multiscreen Splice Function(image processing Function) |
LCD video wall is a special multi-monitor setup that consists of multiple computer monitors, video projectors, or television sets tiled together contiguously or overlapped in order to form one large screen. Screenage's video wall use Samsung high definition DID-LCD glass and stable LED back light for panel makes the panel stable and long working time as 7days and 24hours, high resolution up to 4K display. Driving & powerful monitor control board with multi types contectors as HDMI, VGA, DP and AV makes our video could meet various working scenes. Also, be based on few years experience and feedback from our client, our video wall unit not only can be use for landscape position but also could be portrait.
![]() |

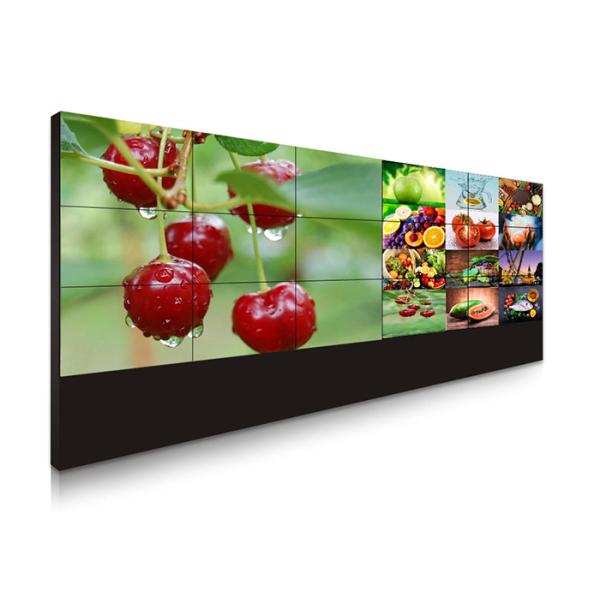

Seamless Wall Lcd Display , 3 X 3 Control Room Video Wall 55 Inch For Surveillance System Images |
